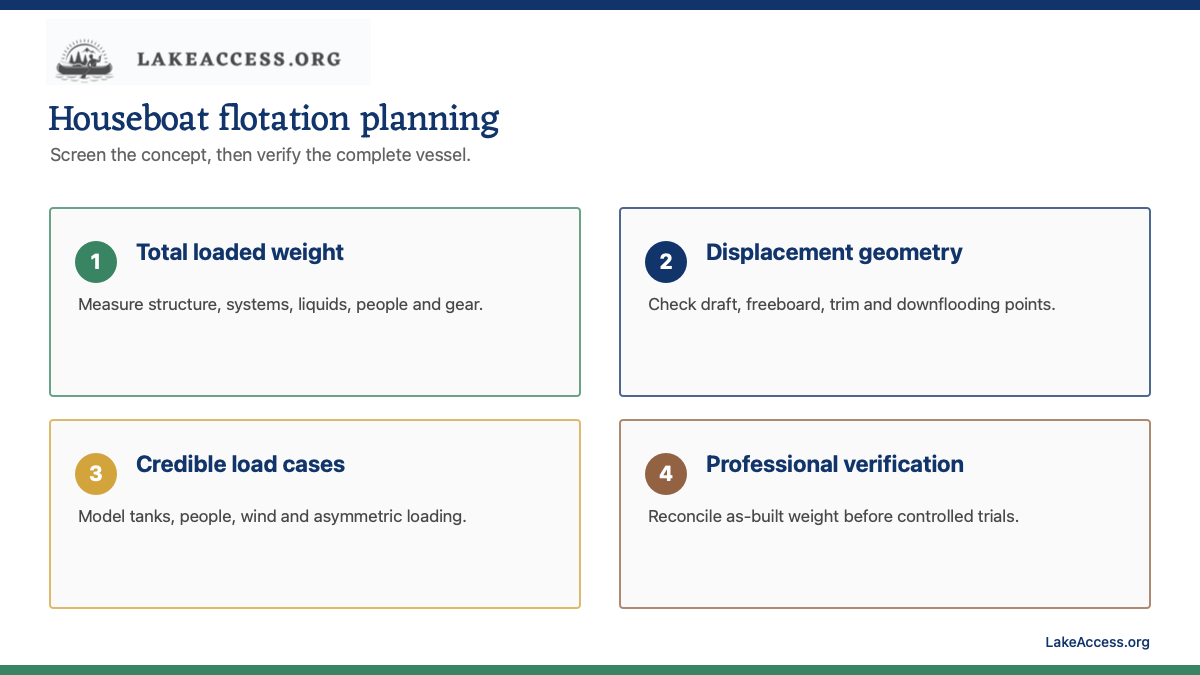

Quick answer: A concept estimate starts by adding the verified loaded weight, converting that displacement to the volume of water the hull must displace, and checking the resulting draft, freeboard, trim and stability in every credible loading condition. That arithmetic is only a screening tool. Flotation requirements, damage assumptions, structure and stability depend on the exact vessel and use, so a qualified naval architect must approve the hull and loading limits before construction or launch.
Decision table
| Decision point | Evidence to collect | Do not assume | Safe next step |
|---|---|---|---|
| Loaded weight is still an estimate | Itemized ledger, scale tickets, tank capacities and people/load assumptions | That brochure dry weight includes systems, liquids and build changes | Replace estimates, run worst credible cases and send the ledger for review |
| Displacement volume fits on paper | Reviewed hull geometry, water density basis, draft and trim calculation | That matching weight and buoyancy creates usable freeboard or stability | Calculate waterplane, freeboard, downflooding and stability with the designer |
| One pontoon or compartment is damaged | Subdivision, reserve volume, openings and damage case defined by the designer | That intact displacement predicts damaged behavior | Require an explicit damage/flooding assessment and recovery plan |
| Houseboat lists after loading | Measured tank states, aboard locations, draft marks and weight changes | That adding foam or shifting one item treats the cause | Unload safely, stop operation and obtain a stability diagnosis |
Use Archimedes only as the first screen
A floating vessel displaces a weight of water equal to its own loaded weight. Divide loaded weight by the selected water weight per unit volume to estimate immersed volume, keeping units consistent. Fresh and salt water do not have identical density, and temperature has a smaller effect, so state the conservative design environment. Never subtract an arbitrary percentage and call the remainder a safety margin.
The same displacement volume can produce very different draft and stability in a narrow pontoon, a wide barge or several compartments. Geometry, waterplane area, center of buoyancy and center of gravity control the result. A spreadsheet that returns a plausible volume has not evaluated heel, trim, wind, wake, turning, downflooding or structural deflection.
Keep reserve buoyancy and payload distinct
Reserve buoyancy is watertight volume above the current waterline before openings or immersion limits are reached; it is not simply unused catalog payload. Payload is the allowable people, liquids and gear within an approved loading condition. Foam or sealed chambers may support a swamped boat under an applicable test, but they do not automatically preserve upright attitude, habitable freeboard or a safe escape route.
Ask the designer to identify limiting draft, minimum freeboard, downflooding points, maximum displacement and permitted load distribution. Mark the accepted waterline and inspect it after every major installation. If the as-built vessel floats lower or trims differently than predicted, stop and reconcile the weight and geometry before continuing tests.
Model asymmetric and changing loads
A houseboat can place people on one deck edge, store batteries to one side, consume water from one tank and add waste to another. Model longitudinal, transverse and vertical positions for each load, plus partial-tank free-surface effect. Include rooftop solar, air-conditioning equipment, rails, tenders and anchors because high or off-center weight can reduce stability even when total displacement remains below a nominal target.
Operating instructions should translate approved cases into observable limits: tank combinations, maximum people by area, roof-deck restrictions, cargo zones and weather limits. Do not ask occupants to move around as an informal stability control. If normal use can create a loading case that was not analyzed, change the arrangement or obtain a new assessment.
Plan a measured lightship and launch check
Before adding variable load, measure the completed lightship configuration under the naval architect or surveyor's procedure. Record every item aboard, tank state, draft at several marks, trim and list. Compare measured displacement with the final ledger. A difference can reveal omitted equipment, construction growth, trapped water or incorrect geometry.
The first controlled launch is a verification step, not permission for recreational use. Follow the approved loading and stability test plan with recovery resources present. Never improvise a heel test with people, hanging weights or unsecured drums. Resolve every unexplained difference, update the as-built calculation and receive the required acceptance before trials progress.
Start with a design basis, not a shopping list
Write down the intended water body, operating season, maximum people, propulsion, cruising speed, range, overnight systems, dock arrangement, haul-out method and whether the vessel will ever be rented or carry passengers for hire. The answer changes structure, freeboard, stability, fuel, electrical, sanitation, fire protection and legal requirements. A lake-only personal vessel is not automatically exempt from design risk, and a component sold for marine use does not prove that the completed system is suitable.
Freeze a dated design basis before buying structural materials. Record the assumptions that control every later decision: fresh or salt water, expected wave and wind exposure, loaded displacement, tank locations, machinery, deckhouse height, openings, emergency egress and maintenance access. When an assumption changes, send that change back through the weight, stability, structure and compliance review rather than treating it as a cosmetic revision.
Separate concept arithmetic from engineering approval
Simple displacement arithmetic, a spreadsheet or a scale reading can expose an impossible idea, but it cannot establish adequate stability, scantlings, weld design, fatigue life, flotation performance or regulatory compliance. The U.S. Coast Guard Boatbuilder’s Handbook explicitly describes its compliance guidance as something other than a complete engineering manual. Use calculations in this guide as a way to organize questions for the responsible designer, not as authorization to launch.
A qualified naval architect or marine engineer should review a new or materially changed hull, especially when the project adds a deckhouse, rooftop equipment, large tanks, batteries, fuel, an unusual pontoon arrangement or passenger capacity. Give the reviewer measured weights, drawings, material certificates and the intended operating profile. A useful review produces controlling limits, loading conditions, test requirements and an as-built record, not only a general statement that the concept looks stable.
Build one traceable weight and equipment ledger
List every permanent and variable item with description, manufacturer, model, measured or documented weight, longitudinal position, transverse position and vertical position. Include hull structure, deck, cabin, windows, doors, roof, tanks, plumbing, wiring, batteries, appliances, furniture, propulsion, fuel, water, waste, anchors, safety gear, people and movable stores. Mark estimates clearly and replace them with scale tickets or manual values before the final analysis.
Keep a change log beside the ledger. A heavier refrigerator, extra battery bank or rooftop solar frame affects more than the purchase line: it changes displacement, trim, center of gravity, freeboard, structural loads and available payload. Photograph the item on a calibrated scale when practical and keep the source document. Weight control works only when the installed vessel and the spreadsheet describe the same configuration.
Protect freeboard, drainage and watertight integrity
Freeboard is the vertical distance from the waterline to the relevant deck edge or gunwale. Added weight reduces it, while heel or trim can bring an opening closer to the water. Identify the lowest downflooding points, including doors, vents, drains, hatches, plumbing penetrations and poorly sealed service openings. Do not count a decorative lip, untested seal or bilge pump as reserve buoyancy.
Rain, spray and shipped water need an unobstructed route overboard that does not rely on an undersized pump. Keep scuppers and freeing paths clear, avoid low pockets in the deck and inspect penetrations from both sides. A houseboat’s broad roof and enclosed accommodation can collect wind load and conceal leaks. Verify drainage and watertight closures in the real loaded attitude, not only while the empty hull is level in a shop.
Treat partially filled tanks as a stability input
Water, fuel and waste are variable loads. Their quantity changes displacement and trim, while liquid moving across a partly filled wide tank creates free-surface effect that reduces stability. A tank being low in the hull does not make this disappear. Tank geometry, baffling, fill state, orientation and restraint belong in the naval architect’s loading cases, and each tank needs a reliable means to determine its actual level.
Do not improvise internal baffles or alter a certified tank. Select equipment designed for its contents and installation, follow support and venting instructions and keep inspection access. Plan credible combinations such as full fresh water with an empty waste tank, the reverse condition, uneven consumption and people gathered on one side. An operating checklist should identify loading combinations that the design review prohibits.
Design structure and systems as interfaces
A deck panel, tank, battery tray, window, rail or appliance transfers load through attachments into surrounding structure. Verify the complete load path, fastener material, edge distance, backing, isolation, sealing and inspection access. Do not use a sealant as an undocumented structural joint, and do not drill a pontoon, hull, deck beam or pressure boundary merely because the fitting itself is labeled marine grade.
Electrical, fuel, ventilation, sanitation and fire systems have placement conflicts that must be resolved on drawings. Ignition sources need required separation or protection around gasoline fuel sources; batteries need restraint and terminal protection; plumbing needs serviceable valves and winterization access. Route conductors and hoses so normal movement, vibration and maintenance cannot abrade them against structure. Record every hidden run before closing walls or decks.
Control corrosion and moisture by compatible details
Dissimilar metals connected in a wet environment can create galvanic corrosion. Wood and composite cores can retain water after an unsealed penetration. Trapped moisture can attack a tank or fastener even when the visible finish looks sound. Select metals, coatings, isolators, fasteners and sealants as a compatible system for the substrate, immersion, ultraviolet exposure, temperature and future disassembly.
Follow the exact coating and sealant technical data for surface preparation, film thickness, cure conditions and material compatibility. More adhesive is not a substitute for correct joint design. Provide drainage and ventilation where the engineering calls for them, seal every core penetration and make high-risk interfaces inspectable. Keep batch numbers and product data with the build record so a later repair does not mix incompatible chemistry.
Plan construction inspection before closing access
Create hold points for hull dimensions, welds or bonds, structural framing, pressure or leak tests, tank installation, hose and conductor routing, electrical protection, ventilation, steering, propulsion, drainage and final loading. Photograph measurements with a scale and location reference. The person checking critical work should be competent for that process and independent enough to reject it before the next layer hides the defect.
An as-built package should show what changed from the reviewed drawings. Include material certificates, equipment manuals, receipts, inspection results, photographs, wiring and plumbing diagrams, weight ledger, test reports and maintenance intervals. This evidence supports registration, insurance, surveys, troubleshooting and resale. A folder of purchase receipts without installation and test evidence is not an as-built record.
Test in controlled stages
Complete shop checks before launch: fastener and attachment review, electrical protection tests, fuel and plumbing leak checks, steering travel, controls, alarms, ventilation, drainage and emergency access. The first launch should occur at a suitable facility with recovery capability, conservative weather and only essential personnel. Follow the naval architect’s test plan and stop criteria; do not use passengers or a public outing as ballast for an informal trial.
Progress only after resolving discrepancies. Record actual draft, trim, list, tank states, aboard weight and environmental conditions. A calm-dock result does not demonstrate behavior in wind, wake, turning or equipment failure. Sea or lake trials must remain within the design professional’s approved sequence and applicable agency requirements. Update the operating limits and as-built record with the accepted results.
Verify federal, state and local requirements separately
Federal construction and equipment rules, state titling and registration, local launch or marina rules, zoning, sanitation restrictions and insurance requirements are separate layers. The applicable rule depends on vessel length, propulsion, use, water, location and whether compensation is involved. Ask the named authority about the exact project and keep its current written instructions; another owner’s registration story is not controlling guidance.
Do not mark a homemade vessel with an invented manufacturer code or copy another hull identification number. Do not represent an imported or commercially produced hull as home-built. Confirm the state-assigned HIN process before permanent marking. If commercial use, rental, carrying passengers, liveaboard occupancy or a change of principal-use state is contemplated, disclose that early because it can change inspection, documentation, licensing and local permission.
Define stop conditions before spending more
Stop construction when the controlling drawings are absent, the calculated or measured weight exceeds the design basis, the hull sits with unexpected trim or list, freeboard is less than reviewed, an opening approaches the water, structure differs from the approved detail, materials cannot be identified, tanks or batteries lack rated restraint, or required inspection evidence is missing. Covering the work makes diagnosis harder and more expensive.
Also stop when agencies give conflicting instructions or an insurer, surveyor, marina and registration office require different evidence. Resolve the conflict in writing with the authority that owns each decision. A credible alternative may be a professionally designed stock platform, an existing certified hull or a smaller shore-based cabin. The safe result is not necessarily the design that preserves every feature in the first sketch.
Project checklist
- Freeze water body, use, people, machinery and environmental assumptions.
- Create an itemized lightship and variable-load ledger with positions.
- Have hull geometry, reserve buoyancy, damage cases and stability reviewed.
- Mark downflooding points and accepted draft/freeboard limits.
- Measure the completed lightship and reconcile it before trials.
Related LakeAccess guides
- How to build a DIY homemade houseboat
- Building a pontoon houseboat
- Houseboat plans for pontoon platforms
- Houseboat weight distribution planning
Sources
Standards, agency procedures and product requirements can change. These official or high-trust sources were checked July 20, 2026; confirm the current rules and exact equipment before building, modifying or operating a vessel.
- USCG Boatbuilder's Handbook flotation requirements (checked July 20, 2026)
- USCG 2003 Boatbuilder's Handbook flotation PDF (checked July 20, 2026)
- 33 CFR Part 183 boats and associated equipment (checked July 20, 2026)
- 33 CFR 183.105 quantity of flotation required (checked July 20, 2026)
- 33 CFR 183.230 stability test (checked July 20, 2026)
- Transport Canada Small Commercial Vessel Safety Guide (checked July 20, 2026)
- Transport Canada simplified stability assessment guide (checked July 20, 2026)
