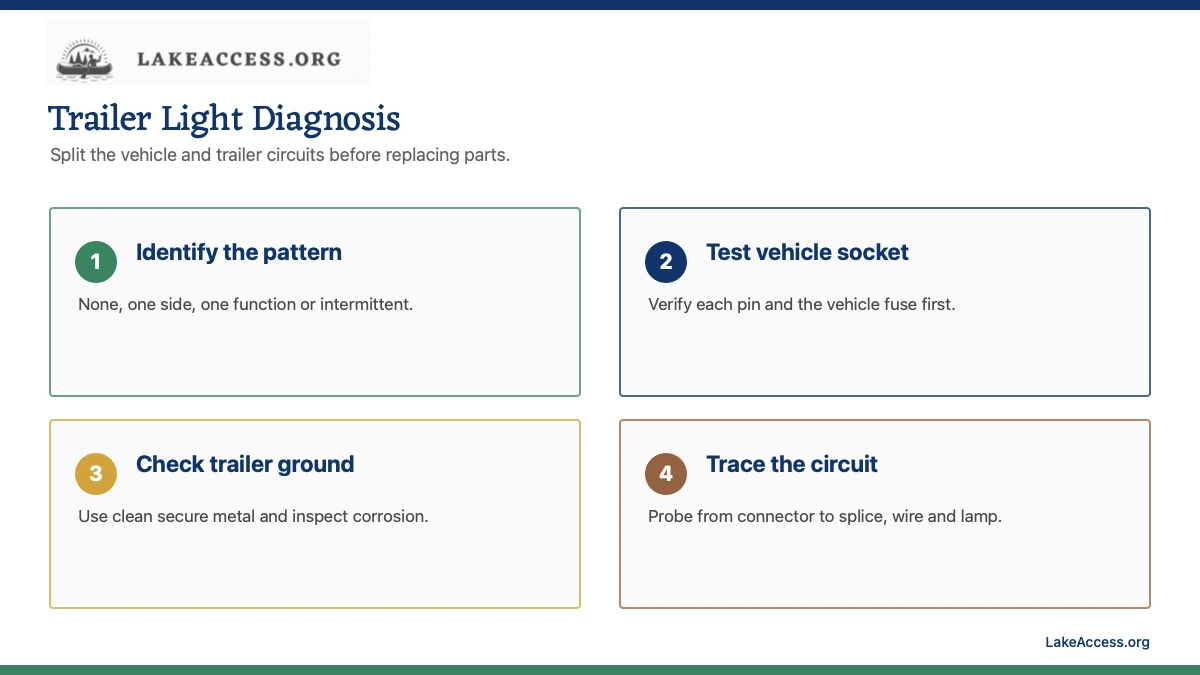

Quick answer: Do not replace every lamp first. Note whether no lights, one side, one function or intermittent functions fail; disconnect the trailer and test the tow-vehicle socket; then verify the trailer main ground and individual lamp grounds before tracing the affected circuit from connector to splice, wire and fixture. Keep the trailer off public roads until every required lamp works, and use the connector diagram for the exact vehicle and trailer rather than assuming wire color.
Diagnostic decision table
| Finding | What it suggests | Do not assume | Next safe check |
|---|---|---|---|
| No trailer functions | Vehicle fuse, socket power, main ground, connector or adapter may have failed | That every lamp failed simultaneously | Separate vehicle and trailer; test each socket pin and ground with the exact diagram |
| One side fails | Side branch, connector terminal, splice, local ground or fixture may be open | That the color convention proves continuity | Probe from connector toward the failed side and inspect immersion points |
| One function fails on both sides | Vehicle fuse or converter, shared connector pin or shared conductor may be involved | That both lamp assemblies need replacement | Verify the function at the vehicle socket before entering trailer harness |
| Dim, cross-feeding or intermittent lamps | High-resistance ground, corrosion, loose contact or damaged wiring is common | That visible illumination meets road requirements | Clean and load-test grounds, connectors and affected circuit |
Record the failure pattern before unplugging
With a helper in the driver seat and the combination safely parked, check tail or marker, left turn, right turn, brake, reverse and any other equipped or required functions. Do not stand between traffic and the trailer. Record brightness, flicker and whether activating one function changes another. This pattern determines which shared circuit to test first.
Confirm the tow vehicle recognizes a connected trailer when its manual describes that behavior. Modern vehicles can use fuses, modules, relays and converters that protect or translate lighting signals. Do not probe a multiplexed or manufacturer-specific circuit by piercing insulation; use approved connector test points and the vehicle wiring procedure.
Test the vehicle and trailer as separate systems
Disconnect the trailer. Using the exact socket diagram and a suitable tester or multimeter, verify ground and each vehicle output while the relevant control is activated. If the socket lacks a function, inspect the vehicle fuse, module, ground and adapter under the owner manual. Repair the vehicle side before disturbing the trailer.
If the vehicle socket passes, use an approved independent tester or controlled power source to test the trailer side one circuit at a time. Observe polarity and fuse protection. Never short pins together or apply power to an unidentified auxiliary or brake circuit. Separating the halves prevents a vehicle fault from being mistaken for a trailer wire failure.
Make ground quality the first trailer check
On a common four-flat connector, CURT identifies white as ground, but verify the actual harness. Follow the main ground to clean, secure bare metal on the trailer frame. Paint, scale, salt and loose fasteners create resistance. Inspect individual lamp grounds, especially fixtures that depend on their mounting studs and sections joined through hinged or bolted frames.
A continuity beep with no load can miss a high-resistance ground. Use the maker's voltage-drop or loaded-test procedure. Clean and remake terminals with appropriate corrosion protection, or install a dedicated return conductor when the trailer maker approves it. Do not rely on the hitch ball as the electrical ground.
Trace the failed branch without guessing by color
Begin at the trailer connector and move rearward through the affected conductor. Inspect pinch points at the coupler and folding tongue, frame pass-throughs, suspension travel, splices and submersible fixtures. Probe at accessible terminals instead of puncturing sealed insulation. Corrosion can travel inside copper beyond the visible green deposit.
If voltage is correct at a fixture and the ground passes under load, replace the failed bulb or sealed lamp with a compatible legal unit. LED polarity matters on some assemblies. Use marine-suitable sealed connectors and route wiring away from abrasion and heat. After repair, support the harness so the ramp, winch, boat and suspension cannot pull it.
Confirm required lighting before road use
Federal Motor Vehicle Safety Standard 108 establishes federal requirements for new vehicle lighting equipment, while states regulate operation and may require additional equipment by trailer width or length. Use the current state motor-vehicle source for the route. Do not interpret one working tail lamp as permission to tow.
Test every function again with the boat loaded, connector secured and harness clear. Check from the rear and both sides at realistic viewing angles. Submerge only lights and connectors designed for that use, and disconnect power before launch when the trailer or lamp maker instructs it. Inspect again after recovery for water and impact.
Build the answer from the exact labels and manuals
A boat trailer is a system, not a collection of interchangeable rules of thumb. Start with the certification label, trailer owner manual, axle or hub manual, tire markings, coupler and jack ratings, tow-vehicle owner manual and hitch documentation. Record the trailer VIN, model, gross vehicle weight rating, axle ratings, tire size and the boat’s loaded condition. If a label is missing or unreadable, ask the trailer manufacturer or a qualified dealer to identify the equipment before changing or loading it.
Use the most restrictive applicable limit. A higher tire rating does not raise an axle, wheel, hub, trailer, hitch or vehicle rating. A strong hitch does not create payload in the tow vehicle. Hardware that looks similar can require a different torque, lubricant, adjustment or replacement part. This article offers a diagnostic workflow, not model-specific authorization, so confirm every numeric setting in documentation for the exact equipment.
Inspect the complete loaded combination
Evaluate the trailer as it actually travels: boat, engine, batteries, fuel, water, anchor, fishing equipment, safety gear and removable cargo aboard; covers, coolers and accessories secured; spare tire and carrier included. Weighing only the empty trailer or using a boat brochure’s dry weight can miss installed and variable loads. A public scale or qualified marine service facility can provide the evidence needed for axle, tire and tongue-load decisions.
Record what was aboard when the measurement was taken. Moving a battery, full fuel tank, anchor or heavy gear changes load distribution. Loading should also be repeatable, with the boat at its intended winch-post position and bow and stern restraints installed. Do not solve one rating problem by shifting weight until another component, axle or tow-vehicle limit is exceeded.
Work on level ground with redundant support
Chock the wheels, keep the tow vehicle secured when the procedure requires it, and use lifting and support points approved by the trailer or axle manufacturer. A tongue jack stabilizes or raises the tongue; it is not automatically a service stand. Never work under a boat or trailer supported only by a hydraulic jack, travel lift sling or improvised cribbing. Rated jack stands must be placed where the manufacturer permits.
Unload or professionally support the boat before adjustments that release bunks or structural hardware. Disconnect the trailer electrical plug before resistance or continuity testing, and isolate batteries when the equipment manual requires it. Keep ignition, flames and sparks away from fuel. If corrosion, seized fasteners, damaged structure or uncertain support makes a step unsafe, stop and use a qualified trailer or marine technician.
Separate an observation from a diagnosis
Sway, heat, tire wear, a dim lamp, a noisy hub or a hull contact mark is evidence, not a complete diagnosis. Several faults can produce the same symptom. Begin with a visual inspection and the least invasive measurements, then isolate one part of the system at a time. Compare left and right sides only when the components and loading are meant to match; symmetry does not prove that either side meets specification.
Do not road-test a known unsafe combination. A trailer that sways, has a hot or loose hub, damaged tire, nonworking required lamp, insecure boat or suspect structural support should remain parked until corrected. A short drive to see whether a problem gets worse adds heat, speed and public-road exposure. Arrange mobile service or transport when the safe condition cannot be restored where the trailer sits.
Recheck after immersion and after service
Boat trailers repeatedly move between highway heat and water. Inspect connectors, grounds, brakes, hubs, seals, fasteners, straps and corrosion after launch use according to their manuals. Fresh water can still enter a damaged seal or connector, while salt water accelerates corrosion. Rinsing does not replace inspection, lubrication or scheduled service, and adding grease does not prove that a bearing or seal is healthy.
After any adjustment, verify fastener torque by the component maker’s procedure, reload the boat, repeat the relevant measurements, reconnect and test every lighting function, and complete a stationary pre-trip inspection. Recheck newly serviced hardware after the interval specified by its maker. Save the date, measured values, parts and lubricant used, torque source and technician so the next inspection starts with evidence.
Check law and route requirements separately
Federal equipment standards, state vehicle codes and local operating rules answer different questions. Required lamps, brakes, width equipment, safety chains, inspections and speed restrictions can depend on the trailer, load and jurisdiction. Confirm the rules for every state on the route through the state motor-vehicle or transportation agency; do not treat a retailer chart or another state’s threshold as legal advice.
Legal minimum equipment is not a substitute for manufacturer maintenance. A light can satisfy the required function yet still have corrosion that will soon fail. A combination can be below a posted weight threshold but outside a component rating. Use both checks: comply with current law and follow the service, loading and fit instructions for the exact boat, trailer and tow vehicle.
Create a repeatable inspection record
Use one dated worksheet for the trailer VIN, boat model, tow vehicle, loaded scale tickets, tongue-weight measurement, tire pressures, hub observations, lighting test and bunk contact. Photograph certification labels and the finished travel load. Record the ambient condition and whether tires were cold, because a value without its measurement condition is easy to misuse later. Keep receipts and part numbers with the record instead of relying on memory at the next season.
A record makes changes visible. Compare like with like: the same loading plan, gauge, scale arrangement and inspection point. A meaningful change in tongue load, tire pressure loss, hub behavior, lamp brightness or hull contact deserves investigation before departure. Do not normalize a worsening trend because the trailer completed its last trip; road shock, storage and immersion can turn a marginal condition into a failure.
Know when the job needs a qualified technician
Professional help is appropriate when identification is uncertain, labels are missing, ratings conflict, structure or welds are damaged, a spindle or bearing surface is scored, brakes are contaminated, wiring enters a vehicle control module, or the hull lacks documented support zones. A marina lift operator, trailer dealer, tire specialist, axle service center or tow-vehicle dealer solves a different part of the system, so choose the provider that owns the uncertain component.
Give the technician the measurements, photos, model numbers and failure pattern rather than only a requested part. Ask for the controlling specification and the completed test result. After service, repeat the owner-level pre-trip inspection and verify that no new interference, loose wiring or load shift was introduced. Outsourcing a repair does not remove the need to confirm the trailer is ready before entering a ramp or public road.
Before the first trip after repair or adjustment, perform a stationary function check and a low-speed check only where the equipment documentation and local rules permit it. Stop immediately for unusual noise, movement, odor, heat, warning messages or changed handling. Return to the inspection point and resolve the cause; do not continue toward the lake merely because a reservation, launch slot or travel schedule is waiting.
Pre-trip checklist
- Record exactly which functions and sides fail before changing anything.
- Disconnect and test the tow-vehicle socket using its exact pin diagram.
- Verify the trailer main ground and each affected lamp ground under load.
- Trace connector, splice, conductor and fixture for corrosion or physical damage.
- Repair with compatible sealed components and retest every legally required function.
