Quick answer: Choose marine wire from the greater size required by allowable voltage drop and conductor ampacity after all derating. Use the complete positive-plus-negative round-trip length, the manufacturer load current, 3% drop for critical circuits such as panel feeders, navigation lights and electronics, and 10% only where the applicable standard and equipment allow it. This article is a planning workflow, not a substitute for current ABYC E-11, equipment instructions or a qualified marine electrician.

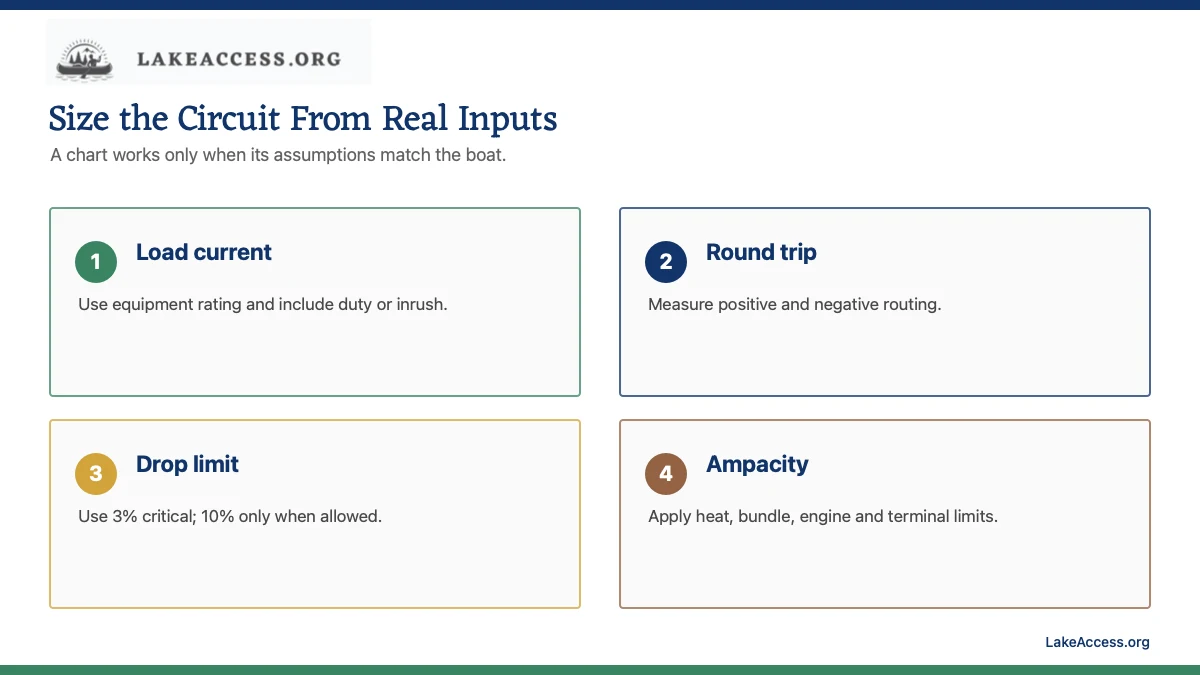

Decision table
| Input | Use | Common mistake | Verification |
|---|---|---|---|
| Load current | Use nameplate or manufacturer maximum sustained current | Guessing from fuse size | Equipment manual |
| Circuit length | Positive run plus negative return | Using one-way distance | Measured route before purchase |
| Voltage drop | 3% for critical circuits; 10% only when permitted | Using 10% for every branch | Current standard and circuit function |
| Ampacity and derating | Check insulation, engine space, bundling and termination limits | Selecting from voltage drop alone | Current ABYC table and component ratings |
Build a load and route worksheet
Record nominal system voltage, equipment model, maximum sustained current, startup or inrush behavior, duty cycle and manufacturer fuse recommendation. Measure the actual conductor route from source to load and back to the return point. A device ten feet from the panel can require roughly twenty feet of conductor for voltage-drop calculations.
Mark engine-space sections, conduits, bundles, hot surfaces, wet locations and flex points. These details affect insulation, derating, support and terminal choices. Leave routing margin without turning the extra coil into an unplanned heat-retaining bundle.
Calculate voltage drop with explicit assumptions
A useful planning form of the copper voltage-drop relationship is voltage drop equals current multiplied by round-trip conductor resistance. Resistance depends on wire material, gauge, temperature and length, so a generic chart is valid only for its stated assumptions. Divide calculated drop by nominal circuit voltage to express the percentage.
For a 12-volt circuit, 3% is 0.36 volt and 10% is 1.2 volts. Those are design ceilings, not target losses. Blue Sea identifies panel feeders, bilge blowers, electronics and navigation lights as critical 3% circuits. Verify the current standard and device manual because some loads require a tighter limit.
Check ampacity after voltage drop
A conductor large enough for voltage drop can still fail an ampacity check after temperature, bundling, engine-space and termination factors are applied. Conversely, a short high-current run may pass voltage drop while requiring a larger conductor for heat. Complete both checks and select the larger acceptable size.
Use stranded tinned copper marine wire with insulation and markings appropriate to the installation. Do not assume automotive primary wire, household solid conductor or an unknown marketplace cable meets marine construction and temperature requirements. The smallest terminal, switch, fuse block or connector rating can constrain the circuit.
Match terminals and overcurrent protection
Choose terminals listed for the conductor material and gauge, use the correct controlled-cycle crimp tool and support the cable so vibration does not load the terminal. Seal and protect connections as specified without trapping water or hiding a poor crimp. A pull test and visual inspection should be part of the work record.
The fuse or breaker normally protects the conductor, while the equipment maker may require a lower value to protect the device. Place overcurrent protection according to the current rule near the source, and verify interrupt rating and ignition protection for the battery bank and location. Never enlarge a fuse to stop nuisance opening without diagnosing the load, wire and fault.
Treat large loads and battery cables separately
Windlasses, inverters, thrusters and starting circuits involve high current, inrush and specialized exceptions. A small-branch chart cannot safely size them. Use the equipment installation manual, current standard, battery short-circuit capability and a professional design review.
Parallel conductors, lithium battery systems, multiple battery banks and long feeder runs add failure modes that a single voltage-drop equation does not resolve. Protect every source and conductor segment as required, identify disconnects clearly and document the finished one-line diagram.
Test the installed circuit under load
After inspection and energization, measure voltage at the source and load while the equipment operates at a representative current. The difference is the circuit drop under those conditions. Record current, voltage, duration and temperature so the result can be compared with the design assumption.
A larger-than-expected drop can indicate a loose termination, damaged conductor, undersized section, poor return path or failing switch. De-energize before tightening or disassembly. A passing voltage measurement does not replace overcurrent, routing, support, insulation and ignition-protection checks.
Work from a current circuit record
Identify every energy source, battery bank, charger, solar controller, alternator feed and shore-power connection that can energize the work area. Use the boat and equipment manufacturer shutdown procedure, confirm the correct disconnect points and prevent unintended reconnection. A switch label is not proof that a conductor is de-energized.
Update a one-line diagram with conductor gauges, protection devices, switches, returns and equipment models. Photograph existing routing before moving anything. Undocumented add-on wiring is common on older boats, so trace both positive and negative conductors rather than assuming color or destination.
Use marine-rated components and controlled terminations
Select conductor, terminals, fuse blocks, breakers, switches and enclosures for the system voltage, current, temperature, moisture, vibration and ignition environment. Tinned stranded copper is the normal marine choice for flexible DC wiring, but the component documentation and applicable standard control the installation.
Use the specified stripping dimension and a calibrated or verified crimp tool for the terminal. Inspect conductor strands before insertion, complete the required pull and visual checks, and support the wire so vibration and service access do not load the terminal. Do not solder a poor crimp or hide damaged strands under heat-shrink.
Separate voltage drop from overcurrent protection
Voltage-drop sizing is an operating-performance check. Ampacity and overcurrent protection are fire-risk controls. A conductor must pass both, and the fuse or breaker does not compensate for excessive voltage drop. Likewise, a conductor that delivers acceptable voltage can still be unsafe if it is undersized after derating.
Use actual round-trip length and measured or manufacturer load current. Confirm critical-circuit drop limits, engine-space temperature, bundles, insulation rating and terminal constraints. Protect conductors at sources as required, including additional sources created by battery banks or chargers.
Inspect the return path
A 12-volt device needs a complete positive and negative path. Corrosion, undersized returns and shared high-current connections can create voltage loss and unpredictable behavior. Include the negative conductor in length calculations and loaded measurements, and do not use an unverified metal structure as a substitute return.
Keep DC negative, AC grounding and bonding functions distinct in the diagram even where the applicable design connects them at defined points. Incorrect connections can create shock, corrosion or fault-clearing hazards. Complex multi-source and shore-power systems deserve review by a qualified marine electrician.
Commission under controlled load
Before energizing, inspect polarity, fuse type and rating, terminal covers, strain relief, conductor support, clearances and labels. Energize one circuit at a time. Measure source and load voltage while the device operates in a representative mode, and compare the result with design assumptions and equipment requirements.
Stop for abnormal heat, odor, noise, unstable readings, nuisance protection opening or visible arcing. De-energize before touching or tightening a connection. Thermal imaging can support an inspection when used correctly, but it does not replace torque procedures, voltage-drop measurements or direct examination of a suspect termination.
Keep service information with the boat
Label both ends of conductors and every panel position with durable identifiers. Record wire size, route, fuse class and rating, equipment model, test current, source voltage, load voltage and date. Keep spare fuses only in the exact approved types and protect them from moisture and loose metal objects.
Repeat the design review whenever a device, battery chemistry, panel or charging source changes. An empty switch position is not pre-approved capacity. Future work should begin from the updated diagram and measurements rather than reverse-engineering the same circuit again.
Define the measurement before taking it
Write what the measurement is intended to prove, the expected range, test points, operating condition and stop criteria. A voltage observed with the circuit off cannot prove loaded performance. A current measurement at idle cannot size a conductor for maximum sustained demand. A resistance measurement on an energized circuit can damage the meter or create a hazard.
Use an instrument and leads rated for the circuit and environment, inspect them before use and select the correct input jacks and function. Prove the meter on a known appropriate source when the procedure requires it. Keep exposed probe metal to the minimum needed, control body position and prevent a slipped probe from bridging positive to negative or grounded metal.
Record uncertainty and repeatable test conditions
Battery voltage, charging stage, equipment mode, ambient temperature and connection temperature can change a result. Record those conditions with the reading. When comparing source and load voltage, take readings close enough in time that changing battery or alternator output does not masquerade as circuit drop. A meter resolution digit should not be reported as installation precision.
Repeat an unexpected reading after making the circuit safe and checking test placement. Compare directly across a suspect connection under load to isolate its contribution. Do not pierce insulation or improvise an exposed connection unless an approved procedure and repair method exist. Protect the conductor after any authorized test access.
Design for inspection and fault isolation
Route and label conductors so a future technician can trace the circuit without removing unrelated systems. Keep protection devices visible and accessible while preserving required covers and environmental protection. Provide service loops only where they do not create unsupported weight, chafe or heat-retaining bundles.
Separate branch returns and positive feeds clearly enough that one device can be isolated and tested. Do not bury an inline fuse behind a sealed liner or place a connection beneath a likely leak. Good access reduces the temptation to bypass protection, cut an unknown conductor or diagnose by replacing parts.
Inspect for corrosion, chafe and heat over time
Commissioning is one snapshot. Add periodic checks suited to the boat, environment and equipment maker. Look for green or black conductor corrosion, swollen insulation, loose support, water tracks, cracked covers, fuse discoloration and terminals that have moved. Investigate an electrical odor or repeated reset immediately rather than waiting for the next schedule.
Compare loaded voltage and connection temperature with the recorded baseline when symptoms appear. A rising drop can reveal a deteriorating termination before equipment stops working. Replace damaged components with approved equivalents and repeat the full protection and performance review; cleaning a visible surface does not restore a corroded conductor hidden under insulation.
Worked planning example without a universal gauge answer
Assume a device manual lists a 6-amp maximum sustained draw on a nominal 12-volt circuit and the measured cable route is 14 feet from panel to device. The voltage-drop length is 28 feet because current travels out and back. The first worksheet decision is whether the circuit is critical and therefore limited to 3% drop, or whether the current standard and device permit 10%.
Next enter 6 amps, 28 feet, nominal voltage and the chosen drop limit into the current standard table or a reviewed calculator. That result is only the voltage-drop candidate. Independently check conductor ampacity for insulation temperature, engine-space exposure, bundle size and terminal ratings. Select the larger conductor required by the two checks and then confirm the equipment maker accepts it.
The example intentionally does not publish one AWG result because missing details change the answer. A portion routed through an engine space, a low-temperature terminal, a larger future load or a tighter device voltage requirement can require a larger conductor. The calculation record should preserve every assumption so another technician can reproduce it.
Distinguish AWG from metric conductor sizes
American Wire Gauge numbers become physically larger as the gauge number decreases. Metric cable is commonly marked by copper cross-sectional area in square millimeters, which is not a direct gauge number. Do not relabel an approximate conversion as an exact substitute. Use manufacturer dimensions, strand construction and ampacity data for the actual cable and terminal.
A terminal marked for one gauge range may not accept a nominally similar metric conductor, especially after insulation and strand-count differences. Confirm the conductor, terminal and crimp die as one listed or manufacturer-approved combination. Never trim strands to force a cable into a smaller terminal.
When a supplier offers both AWG and metric cable, preserve the printed manufacturer part number in the worksheet. That reference is more reliable than a handwritten approximate conversion and lets the next technician retrieve the same insulation, strand and temperature data for future documented service records and reliable later comparison.
Working checklist
- Record equipment current, duty cycle and manufacturer fuse value.
- Measure the complete positive and negative conductor route.
- Apply the correct voltage-drop limit for the circuit function.
- Check ampacity with engine-space, bundle and temperature derating.
- Verify terminals, overcurrent protection, routing and loaded voltage drop.
